Dry-type transformer

In modern power systems, dry-type transformers are becoming increasingly popular due to their safe, durable, and environmentally friendly operation. Unlike traditional oil-immersed transformers, dry-type units do not use insulating liquids, thereby eliminating the risk of fire and explosion and minimizing operational hazards

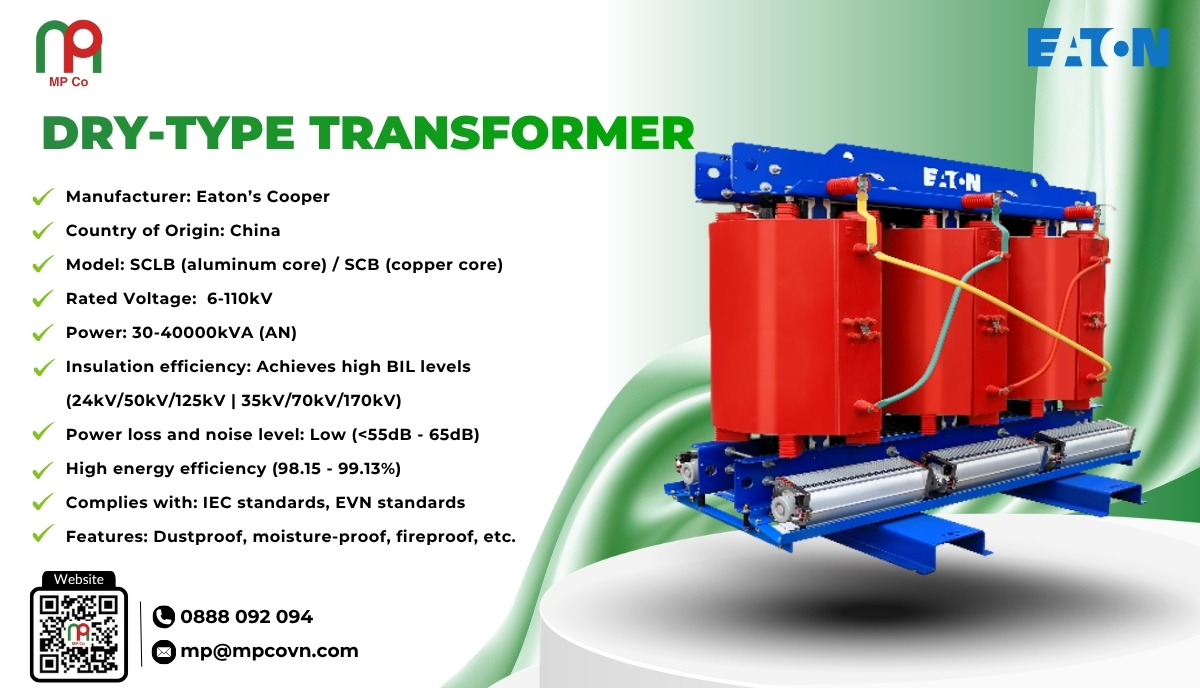

Technical Specifications of Eaton Dry-Type Transformers | My Phuong

Key Features:

• Unlike traditional oil-immersed transformers, SCB/SCLB dry-type transformers are designed without the use of liquids, completely eliminating the risks of leakage, fire, explosion, and environmental pollution. This allows the equipment to be installed directly within residential areas, inside high-rise buildings, or in confined spaces where stringent fire safety requirements are paramount.
• SCB/SCLB dry-type transformers are manufactured from high-grade insulating materials, processed using modern technology, ensuring absolute insulation and high surge voltage (BIL) resistance. They operate stably under conditions of frequent power grid surges or lightning strikes, protecting the entire system and extending their service life.
• SCB/SCLB dry-type transformers have very low power losses, thanks to their optimized design from materials to winding structure. This not only helps save on monthly electricity consumption but also minimizes heat generation, extending the lifespan of the equipment.
• In addition, the machine operates with low noise levels, making it suitable for use in environments requiring quiet spaces such as hospitals, schools, residential areas, and offices. This is an advantage that many oil-filled transformer models cannot achieve.
• One of the major advantages of SCB/SCLB is its excellent dust, moisture, and fire resistance. The machine can operate stably in environments with high humidity, dust, or areas with strict fire safety requirements such as chemical plants, airports, or public areas.
• Furthermore, the insulating materials used are self-extinguishing, helping to limit the risk of fire spreading in the event of a short circuit or overheating. This is a key factor in ensuring the safety of operators and surrounding infrastructure.
• Dry-type transformers (SCB/SCLB) are capable of withstanding large short-circuit currents without causing internal structural damage. This ensures stable operation even during sudden grid failures. The robust design also minimizes internal failures, reducing repair and replacement costs and maintaining continuity of operation for power plants or systems.
• SCB and SCLB are two lines of dry-type transformers with different core configurations to suit different application needs:
  • SCB (copper core): High efficiency (99.13% for 3200kVA transformer), low losses (740W for 160kVA transformer), suitable for projects requiring stringent technical specifications and long-term stability.
  • SCLB (aluminum core): High efficiency (99.13% for 3200kVA transformer), low losses (740W for 160kVA transformer). Lighter weight, lower investment cost, suitable for projects requiring budget optimization while still ensuring standard technical requirements.

Practical Applications

• High-rise buildings, apartment complexes, hospitals, schools
• Shopping mall, data center
• Industrial plants, manufacturing plants
• Substations in residential and urban areas.
• Airports, seaports
• Areas requiring high standards of fire safety and stability.
