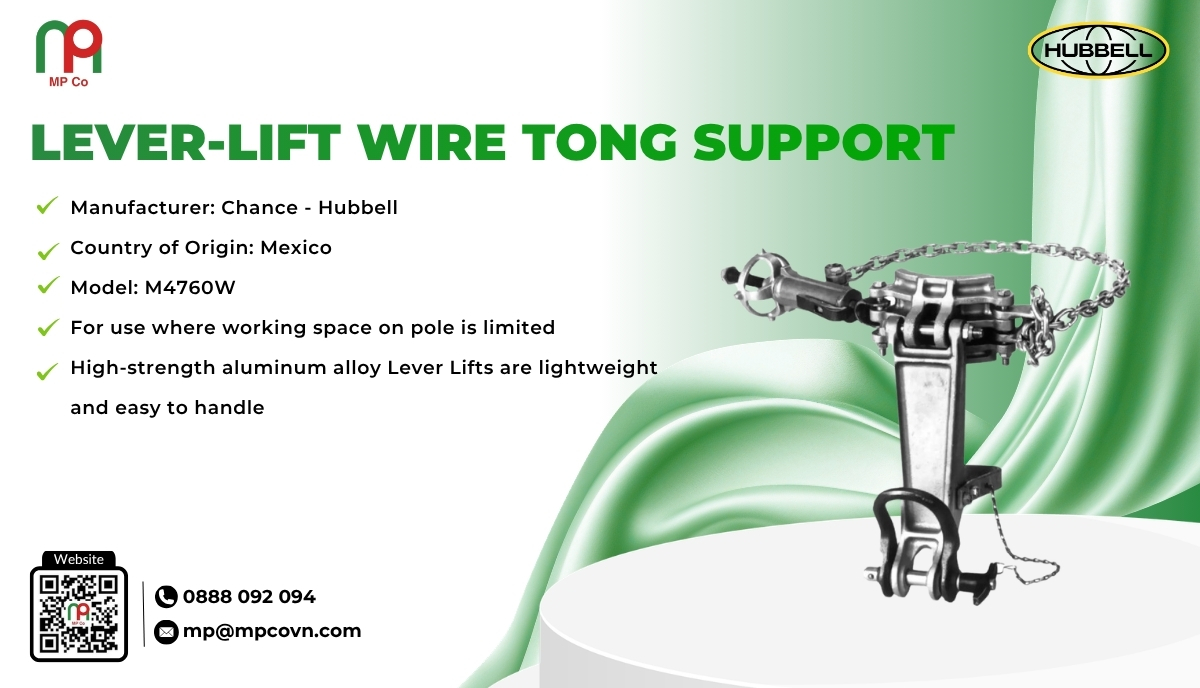

Lever-Lift Wire Tong Support

Impressive Technical Specifications of the Lever-Lift Wire Tong Support

Key Features:

• Optimized Design for Confined Spaces: Suitable for limited working areas on pole structures.
• Designed for Heavy-load Structures: Performs effectively on H-frame structures or suspension insulator assemblies carrying heavy loads.
• Replaces Wire Tong Saddles for loads over 2,500 lb: Ensures greater stability and safety when lifting heavy conductor loads>
• High-strength Aluminum Alloy: Lightweight and robust structure, resistant to deformation, and easy to handle in the field.
• High Conductor Lifting Capability: Provides a total conductor lifting travel of 20¾ inches.
• Compatible with all Wire Tong sizes
• Quick Single-type Installation: Simply remove the locking pin, insert the Wire Tong butt ring into the holding fork, and lock it back in place.
• Upgradeable to Double Type: Can be upgraded using an arbor adapter when two Wire Tongs need to be used simultaneously.

Practical Applications

• Lift or lower conductors in confined working areas on utility poles
• Lift conductors on H-frame structures
• Support conductor load transfer on heavily loaded suspension insulator strings
• Replace Wire Tong Saddles in heavy-load applications over 500 lb
• Support crossarm replacement, insulator replacement, or live-line conductor repair without power interruption
• Used together with a pulley to precisely control conductor lifting and lowering
