Capacitor switch (Eaton)

Capacitor switches manufactured by Eaton’s Cooper are specialized devices for switching capacitor banks in 24kV voltage systems. Utilizing solid-dielectric vacuum technology, the device delivers stable and safe switching performance with superior mechanical endurance of up to 10,000 operations. The compact design supports SCADA control, making it suitable for installation at various points within modern smart grids.

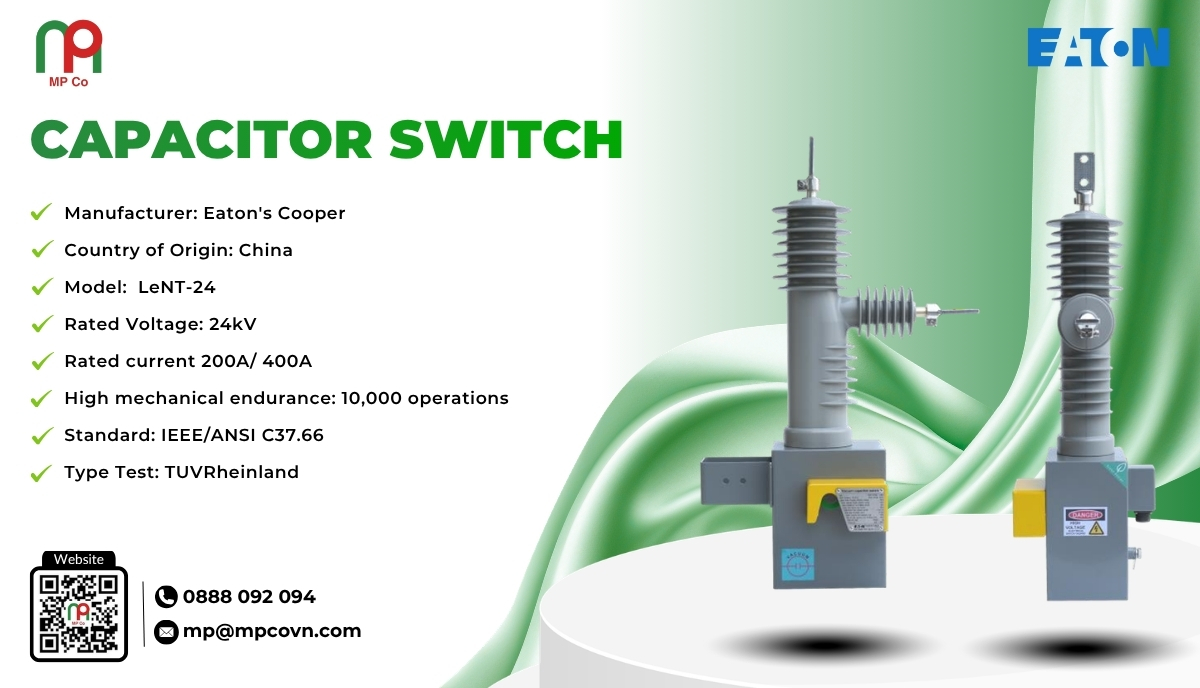

Impressive Technical Specifications of Eaton Capacitor Switches

Key Features:

• The capacitor switch utilizes solid-dielectric insulation technology made from Cycloaliphatic Epoxy material, providing moisture resistance, excellent insulation, and durability in harsh environments. Combined with a vacuum interrupter, the device enables fast switching, limits heat generation, and enhances operational safety. This technology also contributes to extending the lifespan and minimizing maintenance costs.
• The device can be operated via motor, solenoid coil, or manual override, accommodating various practical operational methods. Notably, the control cabinet supports SCADA system integration via the IEC104 protocol, enabling efficient remote monitoring and control. This is an ideal solution for projects aiming toward smart grids and operational automation.
• With mechanical endurance of up to 10,000 operations, the device provides absolute reliability in systems requiring frequent and continuous switching. Its robust construction maintains stable switching performance throughout the product’s life cycle. This is the optimal solution for minimizing the risk of unexpected downtime.
• The LeNT-24 capacitor switch complies with the IEEE Std C37.66 standard and has been tested at TÜV Rheinland, a globally prestigious laboratory. This ensures that the device not only achieves high performance but also integrates seamlessly with modern power systems worldwide. It is the ideal choice for key projects and long-term investments.

Practical Applications

• Capacitor Switching in 24kV Distribution Systems
• Applications in industrial substations, export processing zones, and manufacturing plants.
• Automatic Reactive Power Compensation (ARPC) systems in large-scale industrial parks
• Renewable energy projects such as solar and wind power – requiring remote monitoring and control.
• Smart grids require SCADA integration for optimized operation and centralized monitoring.
• Power distribution systems in high-rise buildings and commercial centers, where compact and safe switching solutions are required.

Effective & Reliable Capacitor Switching Solutions for Every Power System

The capacitor switch is more than just a switching device—it is a comprehensive solution that ensures capacitor systems operate with greater safety, stability, and intelligence. Featuring SCADA connectivity, a compact design, high endurance, and solid-dielectric vacuum technology, this product is the perfect choice for projects requiring automation and long-term operational optimization.

Contact MP Co. today for expert consultation and a detailed quotation on our capacitor switches—the reliable solution for your modern power system.
