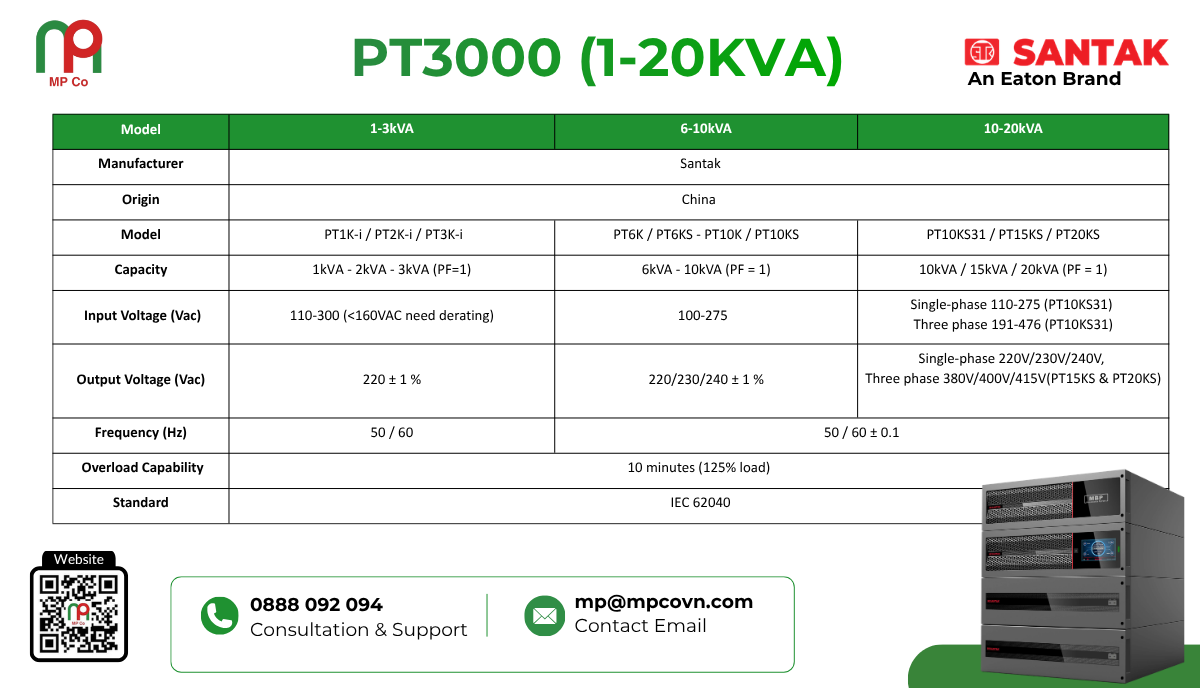

PT3000 (1-20kVA)

PT3000 (1-20kVA)

Key Features:

• Low Loss, High Power Density: The entire series features a unity output power factor (PF = 1), delivering maximum usable power to connected loads. The 20kVA model achieves up to 96% efficiency in Double Conversion mode, helping reduce energy consumption and operating costs. Designed for space-saving installation, the UPS occupies only 3U of rack height and has a depth of less than 600 mm, making it ideal for applications where rack space is limited.
• Programmable Output Sockets: The PT3000 Series UPS is equipped with a group of programmable output sockets, allowing users to configure the on/off sequence for individual load groups. This enables connected equipment to be powered on or shut down in a predefined order. When operating in battery mode, non-critical loads can be disconnected first, extending backup time for mission-critical equipment.
• Superior Environmental Adaptability: The PT3000 Series incorporates Active Power Factor Correction (Active PFC) technology to minimize harmonic distortion fed back into the utility power supply. Its circuit boards are protected with a conformal coating to resist dust and corrosion, ensuring reliable operation in harsh environments. The UPS is designed to operate at ambient temperatures of up to 50°C.
• User-Friendly Interface: The UPS features a Dot Matrix LCD display that provides comprehensive real-time operating data and system status information. It comes with built-in communication interfaces, including Dry Contact, Emergency Power Off (EPO), USB, RS232, and an Intelligent Card Slot, enabling convenient system monitoring, remote management, and seamless integration with various power management systems.
• Intelligent Power Management: Santak Intelligent Power Management software enables centralized monitoring and management of multiple UPS systems. It is compatible with leading virtualization platforms, including VMware and Microsoft Hyper-V/SCVMM. When predefined conditions are met, the software can automatically shut down physical servers and perform live migration of virtual machines within the virtualization cluster, ensuring business continuity and protecting critical IT infrastructure.

Practical Applications

• Data Centers and Centralized Server Rooms: Provides continuous power to racks containing Blade Servers, storage devices (SAN/NAS), and core routers (Router/Switch).
• Network Infrastructure and Telecommunications Systems: Broadcasting stations, distributed network equipment cabinets, internal PBX systems for enterprises or network providers.
• Manufacturing Plants and Light Industrial Environments: Powering PLC control cabinets, automated assembly lines, small CNC machines, or product scanning/inspection equipment.
• Manufacturing Plants and Light Industrial Environments: Powering PLC control cabinets, automated assembly lines, small CNC machines, or product scanning/inspection equipment.
• Corporate Offices and Smart Buildings: Maintains power for accounting/operational computer systems, security camera systems (CCTV), access control, and fire alarm systems.
